SICURA Mesh

Q20

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 20 sp. 1,0	Q	20.00 x 15.00 - 1.00 x 1.00	ACC	1	1000 1250 1500	B

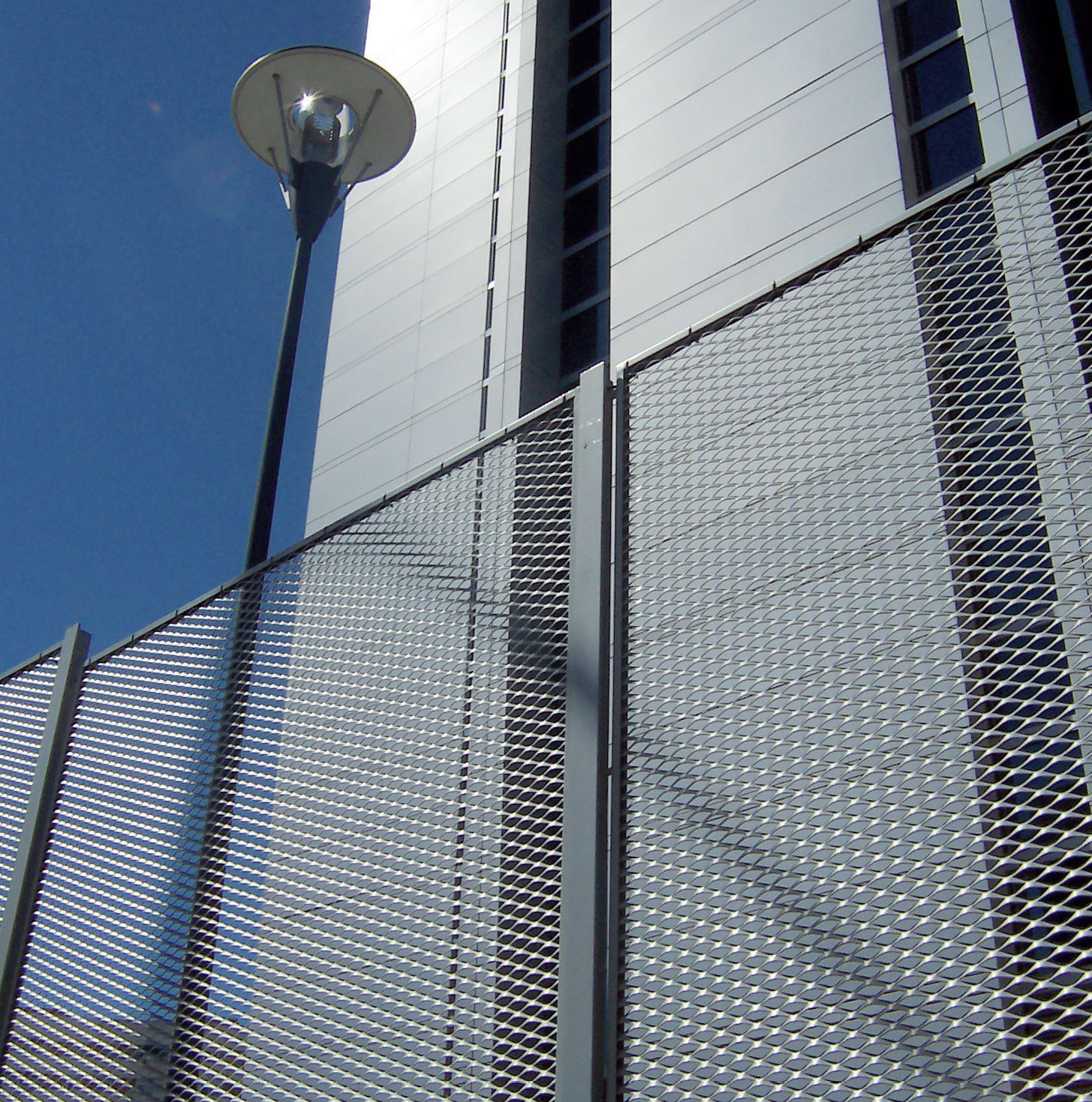

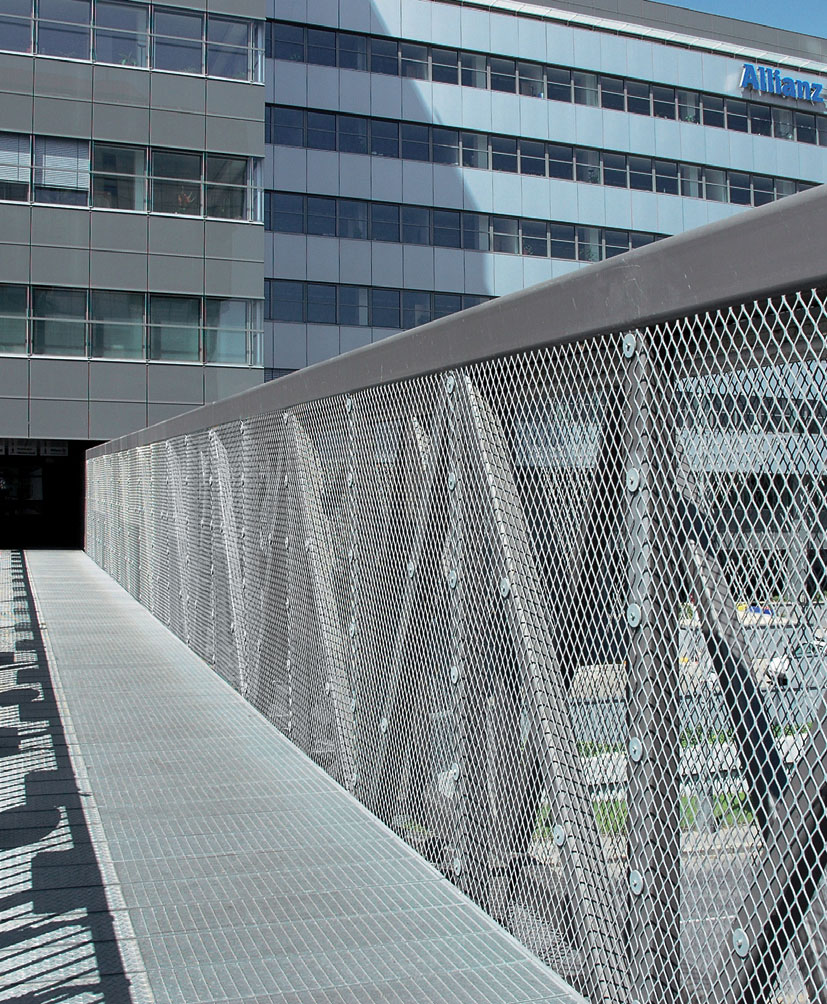

Mesh for Architecture

The most innovative solutions for facades, cladding, furnishing and protection can be created thanks to lines of mesh specifically developed for architecture, design and decoration. The Italfim Stiltech line adds character and originality to any design. Transparent, yet capable of providing shade thanks to the shape of the mesh. Suited to both natural and urban surroundings, commercial and industrial applications.

Square mesh

Q 2

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 2 sp. 0,3	Q	2.00 x 1.60 - 0.30 x 0.30	ACC	0.9	1000	B
Q 2 sp. 0,4	Q	2.00 x 1.60 - 0.40 x 0.40	ACC	1.6	1000	B
Q 2 sp. 0,5	Q	2.00 x 1.60 - 0.40 x 0.50	ACC	2	1000	B

Q 3

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 3 sp. 0,3	Q	3.00 x 2.20 - 0.35 x 0.30	ACC	0.65	1000	B
Q 3 sp. 0,4	Q	3.00 x 2.20 - 0.40 x 0.40	ACC	1.15	1000 1250	B
Q 3 sp. 0,5	Q	3.00 x 2.20 - 0.50 x 0.50	ACC	1.8	1000 1250	B

Q 4

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 4 sp. 0,4	Q	4.00 x 3.00 - 0.40 x 0.40	ACC	0.85	1000 1250	B
Q 4 sp. 0,5	Q	4.00 x 3.00 - 0.50 x 0.50	ACC	1.35	1000 1250	B
Q 4 sp. 0,6	Q	4.00 x 3.00 - 0.60 x 0.60	ACC	1.9	1000 1250	B

Q 5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 5 sp. 0,5	Q	5.00 x 4.00 - 0.50 x 0.50	ACC	1	1000 1250	B
Q 5 sp. 0,6	Q	5.00 x 4.00 - 0.60 x 0.60	ACC	1.45	1000 1250	B
Q 5 sp. 0,8	Q	5.00 x 4.00 - 0.80 x 0.80	ACC	2.55	1000 1250	B

Q 6

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 6 sp. 0,5	Q	6.00 x 4.50 - 0.50 x 0.50	ACC	0.9	1000 1250	B
Q 6 sp. 0,6	Q	6.00 x 4.50 - 0.60 x 0.60	ACC	1.3	1000 1250	B
Q 6 sp. 0,8	Q	6.00 x 4.50 - 0.80 x 0.80	ACC	2.25	1000 1250	B

Q 8

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 8 sp. 0,6	Q	8.00 x 6.00 - 0.60 x 0.60	ACC	0.95	1000 1250	B
Q 8 sp. 0,8	Q	8.00 x 6.00 - 0.80 x 0.80	ACC	1.7	1000 1250	B
Q 8 sp. 1,0	Q	8.00 x 6.00 - 1.00 x 1.00	ACC	2.65	1000 1250	B

Q 10

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 10 sp. 0,6	Q	10.00 x 8.00 - 0.60 x 0.60	ACC	0.7	1000 1250	B
Q 10 sp. 0,8	Q	10.00 x 8.00 - 0.80 x 0.80	ACC	1.3	1000 1250	B
Q 10 sp. 1,0	Q	10.00 x 8.00 - 1.00 x 1.00	ACC	2	1000 1250	B

Q 12

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 12 sp. 0,8	Q	12.00 x 9.50 - 0.80 x 0.80	ACC	1.1	1000 1250	B
Q 12 sp. 1,0	Q	12.00 x 9.50 - 1.00 x 1.00	ACC	1.7	1000 1250	B
Q 12 sp. 1,5	Q	12.00 x 9.50 - 1.50 x 1.50	ACC	3.75	1000 1250	B

Q 14

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 14 sp. 0,8	Q	14.00 x 11.00 - 0.80 x 0.80	ACC	0.95	1000 1250 1500	B
Q 14 sp. 1,0	Q	14.00 x 11.00 - 1.00 x 1.00	ACC	1.45	1000 1250 1500	B
Q 14 sp. 1,5	Q	14.00 x 11.00 - 1.50 x 1.50	ACC	3.25	1000 1250 1500	B

Q 16

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 16 sp. 1,0	Q	16.00 x 12.00 - 1.00 x 1.00	ACC	1.35	1000 1250 1500	B
Q 16 sp. 1,0	Q	16.00 x 12.00 - 1.50 x 1.00	ACC	2	1000 1250 1500	B
Q 16 sp. 1,5	Q	16.00 x 12.00 - 1.50 x 1.50	ACC	3	1000 1250 1500	B

Q 18

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 18 sp. 1,0	Q	18.00 x 13.00 - 1.00 x 1.00	ACC	1.25	1000 1250 1500	B
Q 18 sp. 1,0	Q	18.00 x 13.00 - 1.50 x 1.00	ACC	1.85	1000 1250 1500	B
Q 18 sp. 1,5	Q	18.00 x 13.00 - 1.50 x 1.50	ACC	2.75	1000 1250 1500	B

Q 20

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
Q 20 sp. 1,0	Q	20.00 x 15.00 - 1.00 x 1.00	ACC	1.05	1000 1250 1500	B
Q 20 sp. 1,5	Q	20.00 x 15.00 - 1.50 x 1.50	ACC	2.4	1000 1250 1500	B

Diamond mesh

The weights given in the table are indicative and refer to carbon steel mesh. Other types of metal may be used for certain products, on request: Sendzimir carbon steel, aluminium and copper. Measures in mm. Expanded mesh comes in roll or sheets. Standard formats as shown in the table. Can be personalised on request.

R 4

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 4 sp. 0,3	R	4.00 x 2.00 - 0.50 x 0.30	ACC	1.2	1000	B
R 4 sp. 0,4	R	4.00 x 2.00 - 0.50 x 0.40	ACC	1.6	1000 1250	B
R 4 sp. 0,5	R	4.00 x 2.00 - 0.50 x 0.50	ACC	2	1000 1250	B

R 5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 5 sp. 0,3	R	5.00 x 2.80 - 0.60 x 0.30	ACC	1.05	1000	B
R 5 sp. 0,4	R	5.00 x 2.80 - 0.60 x 0.40	ACC	1.4	1000 1250	B
R 5 sp. 0,5	R	5.00 x 2.80 - 0.60 x 0.50	ACC	2	1000 1250	B

R 6

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 6 sp. 0,4	R	6.00 x 3.50 - 0.70 x 0.40	ACC	1.3	1000 1250	B
R 6 sp. 0,5	R	6.00 x 3.50 - 0.70 x 0.50	ACC	1.6	1000 1250	B
R 6 sp. 0,6	R	6.00 x 3.50 - 0.75 x 0.60	ACC	2.1	1000 1250	B

R 8

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 8 sp. 0,5	R	8.00 x 4.00 - 0.80 x 0.50	ACC	1.6	1000 1250	B
R 8 sp. 0,8	R	8.00 x 4.00 - 0.80 x 0.80	ACC	2.6	1000 1250	B
R 8 sp. 1,0	R	8.00 x 4.00 - 0.80 x 1.00	ACC	3.2	1000 1250	B

R 10

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 10 sp. 0,5	R	10.00 x 5.80 - 1.00 x 0.50	ACC	1.4	1000 1250	B
R 10 sp. 0,8	R	10.00 x 5.80 - 1.00 x 0.80	ACC	2.25	1000 1250 1500	B
R 10 sp. 1,0	R	10.00 x 5.80 - 1.00 x 1.00	ACC	2.8	1000 1250 1500	B

R 12,5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 12,5 sp. 0,5	R	12.50 x 6.00 - 1.00 x 0.50	ACC	1.35	1000 1250	B
R 12,5 sp. 0,8	R	12.50 x 6.00 - 1.00 x 0.80	ACC	2.15	1000 1250 1500	B
R 12,5 sp. 1,0	R	12.50 x 6.00 - 1.00 x 1.00	ACC	2.7	1000 1250 1500	B

R 2,5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 2,5 sp. 0,3	R	2.50 x 1.50 - 0.30 x 0.30	ACC	1	500 1000	B
R 2,5 sp. 0,4	R	2.50 x 1.50 - 0.30 x 0.40	ACC	1.3	500	B
R 2,5 sp. 0,2	R	2.50 x 1.50 - 0.35 x 0.20	ACC	0.75	500 1000	B

R 3

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 3 sp. 0,3	R	3.00 x 1.80 - 0.40 x 0.30	ACC	1.1	1000	B
R 3 sp. 0,4	R	3.00 x 1.80 - 0.40 x 0.40	ACC	1.45	1000	B
R 3 sp. 0,5	R	3.00 x 1.80 - 0.40 x 0.50	ACC	1.8	1000	B

R 3,5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 3,5 sp. 0,3	R	3.50 x 1.90 - 0.40 x 0.30	ACC	1.05	1000	B
R 3,5 sp. 0,4	R	3.50 x 1.90 - 0.40 x 0.40	ACC	1.35	1000	B
R 3,5 sp. 0,5	R	3.50 x 1.90 - 0.40 x 0.50	ACC	1.7	1000	B

R 16

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 16 sp. 0,5	R	16.00 x 8.00 - 1.50 x 0.50	ACC	1.5	1000 1250	B
R 16 sp. 0,8	R	16.00 x 8.00 - 1.50 x 0.80	ACC	2.4	1000 1250 1500	B
R 16 sp. 1,0	R	16.00 x 8.00 - 1.50 x 1.00	ACC	3	1000 1250 1500	B

R 20

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 20 sp. 0,8	R	20.00 x 10.00 - 1.50 x 0.80	ACC	1.95	1000 1250 1500	B
R 20 sp. 1,0	R	20.00 x 10.00 - 1.50 x 1.00	ACC	2.4	1000 1250 1500	B
R 20 sp. 1,5	R	20.00 x 10.00 - 1.50 x 1.50	ACC	3.6	1000 1250 1500	B

R 24

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 24 sp. 0,8	R	24.00 x 13.00 - 1.50 x 0.80	ACC	1.5	1000 1250	B
R 24 sp. 1,0	R	24.00 x 13.00 - 1.50 x 1.00	ACC	1.85	1000 1250	B
R 24 sp. 1,5	R	24.00 x 13.00 - 1.50 x 1.50	ACC	2.8	1000 1250	B

Micromeshes

Micromesh Tipo

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
R 0,50 sp. 0,08	R	0.50 x 0.40 - 0.16 x 0.08	ACC	0.45	250	B
R 0,55 sp. 0,08	R	0.55 x 0.45 - 0.16 x 0.08	ACC	0.49	250	B
R 0,60 sp. 0,12	R	0.60 x 0.50 - 0.18 x 0.12	ACC	0.6	300 500	B
R 0,65 sp. 0,12	R	0.65 x 0.50 - 0.20 x 0.12	ACC	0.62	300 500	B
R 0,75 sp. 0,15	R	0.75 x 0.60 - 0.20 x 0.15	ACC	0.7	300 500	B
R 0,85 sp. 0,15	R	0.85 x 0.65 - 0.23 x 0.15	ACC	0.7	300 500	B
R 1 sp. 0,20	R	1.00 x 0.75 - 0.23 x 0.20	ACC	1	300	B
R 1 sp. 0,15	R	1.00 x 0.75 - 0.27 x 0.15	ACC	0.75	500	B
R 1,5 sp. 0,20	R	1.50 x 1.00 - 0.30 x 0.20	ACC	1	500	B
R 1,5 sp. 0,30	R	1.50 x 1.00 - 0.30 x 0.30	ACC	1.5	500	B
R 1,5 sp. 0,15	R	1.50 x 1.00 - 0.35 x 0.15	ACC	0.7	500	B
R 2 sp. 0,30	R	2.00 x 1.30 - 0.30 x 0.30	ACC	1.1	500 1000	B
R 2 sp. 0,15	R	2.00 x 1.30 - 0.35 x 0.15	ACC	0.65	500 1000	B
R 2 sp. 0,20	R	2.00 x 1.30 - 0.35 x 0.20	ACC	0.85	500 1000	B

Expanded metal

Industry and Architecture. Advantages for both sectors: the standard production of expanded metal has been divided by mesh geometry. See the tables with the technical characteristics of the various models.

Round pattern

ST 2,5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 2,5 sp. 0,3	ST	2.50 (Ø 1.00) - 0.60 x 0.30	ACC	1.35	500	B
ST 2,5 sp. 0,4	ST	2.50 (Ø 1.00) - 0.60 x 0.40	ACC	1.8	500	B
ST 2,5 sp. 0,5	ST	2.50 (Ø 1.00) - 0.60 x 0.50	ACC	2.2	500	B

ST 3

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 3 sp. 0,4	ST	3.00 (Ø 1.30) - 0.70 x 0.40	ACC	1.65	500	B
ST 3 sp. 0,5	ST	3.00 (Ø 1.30) - 0.70 x 0.50	ACC	2	500	B
ST 3 sp. 0,6	ST	3.00 (Ø 1.30) - 0.70 x 0.60	ACC	2.5	500	B

ST 4,5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 4,5 sp. 0,5	ST	4.50 (Ø 1.50) - 1.10 x 0.50	ACC	2.15	1000 1250	B
ST 4,5 sp. 0,6	ST	4.50 (Ø 1.50) - 1.10 x 0.60	ACC	2.9	1000 1250	B
ST 4,5 sp. 0,8	ST	4.50 (Ø 1.50) - 1.10 x 0.80	ACC	3.6	1000	B

ST 6

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 6 sp. 0,6	ST	3.00 (Ø 2.50) - 1.30 x 0.60	ACC	2.6	1000	B
ST 6 sp. 0,8	ST	3.00 (Ø 2.50) - 1.30 x 0.80	ACC	3.1	1000	B
ST 6 sp. 1,0	ST	3.00 (Ø 2.50) - 1.30 x 1.00	ACC	3.9	1000	B

ST 8

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 8 sp. 0,6	ST	8.00 (Ø 3.00) - 1.50 x 0.60	ACC	2.3	1000 1500 1250	B
ST 8 sp. 0,8	ST	8.00 (Ø 3.00) - 1.50 x 0.80	ACC	2.9	1000 1500 1250	B
ST 8 sp. 1,0	ST	8.00 (Ø 3.00) - 1.50 x 1.00	ACC	3.5	1000 1500 1250	B
ST 8 sp. 1,5	ST	8.00 (Ø 3.00) - 1.50 x 1.50	ACC	5.6	1000 1250	B

ST 9

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 9 sp. 0,6	ST	9.00 (Ø 4.00) - 1.60 x 0.60	ACC	2.2	1000 1250 1500	B
ST 9 sp. 0,8	ST	9.00 (Ø 4.00) - 1.60 x 0.80	ACC	2.9	1000 1250 1500	B
ST 9 sp. 1,0	ST	9.00 (Ø 4.00) - 1.60 x 1.00	ACC	3.5	1000 1250 1500	B
ST 9 sp. 1,5	ST	9.00 (Ø 4.00) - 1.60 x 1.50	ACC	5.4	1000 1250	B

ST 10

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 10 sp. 0,6	ST	10.00 (Ø 5.00) - 1.60 x 0.60	ACC	1.95	1000 1250 1500	B
ST 10 sp. 0,8	ST	10.00 (Ø 5.00) - 1.60 x 0.80	ACC	2.6	1000 1250 1500	B
ST 10 sp. 1,0	ST	10.00 (Ø 5.00) - 1.60 x 1.00	ACC	3.3	1000 1250 1500	B
ST 10 sp. 1,5	ST	10.00 (Ø 5.00) - 1.60 x 1.50	ACC	4.9	1000 1250 1500	B
ST 10 sp. 2,0	ST	10.00 (Ø 5.00) - 1.60 x 2.00	ACC	6.5	1000	B

ST 11

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 11 sp. 0,8	ST	11.00 (Ø 5.50) - 1.90 x 0.80	ACC	2.5	1000 1250 1500	B
ST 11 sp. 1,0	ST	11.00 (Ø 5.50) - 1.90 x 1.00	ACC	3.3	1000 1250 1500	B
ST 11 sp. 1,5	ST	11.00 (Ø 5.50) - 1.90 x 1.50	ACC	5	1000 1250 1500	B

ST 12

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 12 sp. 0,8	ST	12.00 (Ø 6.00) - 2.30 x 0.80	ACC	3	1000 1250 1500	B
ST 12 sp. 1,0	ST	12.00 (Ø 6.00) - 2.30 x 1.00	ACC	3.7	1000 1250 1500	B
ST 12 sp. 1,5	ST	12.00 (Ø 6.00) - 2.30 x 1.50	ACC	5.3	1000 1250 1500	B
ST 12 sp. 2,0	ST	12.00 (Ø 6.00) - 2.30 x 2.00	ACC	7.4	1000 1250	B

ST 14

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 14 sp. 0,8	ST	14.00 (Ø 7.00) - 2.70 x 0.80	ACC	3.1	1000 1250 1500	B
ST 14 sp. 1,0	ST	14.00 (Ø 7.00) - 2.70 x 1.00	ACC	4	1000 1250 1500	B
ST 14 sp. 1,5	ST	14.00 (Ø 7.00) - 2.70 x 1.50	ACC	5.9	1000 1250 1500	B
ST 14 sp. 2,0	ST	14.00 (Ø 7.00) - 2.70 x 2.00	ACC	7.6	1000 1250	B

ST 16

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 16 sp. 1,0	ST	16.00 (Ø 8.00) - 3.00 x 1.00	ACC	3.6	1000 1250 1500	B
ST 16 sp. 1,5	ST	16.00 (Ø 8.00) - 3.00 x 1.50	ACC	5.4	1000 1250 1500	B
ST 16 sp. 2,0	ST	16.00 (Ø 8.00) - 3.00 x 2.00	ACC	6.9	1000 1250 1500	B

ST 18

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
ST 18 sp. 1,0	ST	18.00 (Ø 9.00) - 3.10 x 1.00	ACC	3.3	1000 1250 1500	B
ST 18 sp. 1,5	ST	18.00 (Ø 9.00) - 3.10 x 1.50	ACC	5.1	1000 1250 1500	B
ST 18 sp. 2,0	ST	18.00 (Ø 9.00) - 3.10 x 2.00	ACC	6.2	1000 1250 1500	B

Hexagonal mesh

E 3

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 3 sp. 0,4	E	3.00 x 2.00 - 0.50 x 0.40	ACC	1.6	625	B
E 3 sp. 0,5	E	3.00 x 2.00 - 0.50 x 0.50	ACC	2	625	B
E 3 sp. 0,6	E	3.00 x 2.00 - 0.50 x 0.60	ACC	2.4	625	B

E 3,5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 3,5 sp. 0,4	E	3.50 x 2.30 - 0.55 x 0.40	ACC	1.55	625	B
E 3,5 sp. 0,5	E	3.50 x 2.30 - 0.55 x 0.50	ACC	1.9	625	B
E 3,5 sp. 0,6	E	3.50 x 2.30 - 0.55 x 0.60	ACC	2.3	625	B

E 4

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 4 sp. 0,5	E	4.00 x 3.00 - 0.65 x 0.50	ACC	1.7	1000 1250	B
E 4 sp. 0,6	E	4.00 x 3.00 - 0.65 x 0.60	ACC	2.05	1000 1250	B
E 4 sp. 0,8	E	4.00 x 3.00 - 0.65 x 0.80	ACC	2.75	1000 1250	B

E 5

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 5 sp. 0,5	E	5.00 x 3.20 - 0.80 x 0.50	ACC	2	1000 1250	B
E 5 sp. 0,6	E	5.00 x 3.20 - 0.80 x 0.60	ACC	2.4	1000 1250	B
E 5 sp. 0,8	E	5.00 x 3.20 - 0.80 x 0.80	ACC	3.1	1000 1250	B

E 6

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 6 sp. 0,6	E	6.00 x 3.50 - 0.80 x 0.60	ACC	2.1	1000 1250	B
E 6 sp. 0,8	E	6.00 x 3.50 - 0.80 x 0.80	ACC	2.75	1000 1250	B
E 6 sp. 1,0	E	6.00 x 3.50 - 0.80 x 1.00	ACC	3.45	1000 1250	B

E 8

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 8 sp. 0,6	E	8.00 x 4.70 - 0.80 x 0.60	ACC	1.9	1000 1250	B
E 8 sp. 0,8	E	8.00 x 4.70 - 0.80 x 0.80	ACC	2.4	1000	B
E 8 sp. 1,0	E	8.00 x 4.70 - 0.80 x 1.00	ACC	2.8	1000	B

E 25

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 25 sp. 1,0	E	25.00 x 13.00 - 1.50 x 1.00	ACC	1.85	1000	B
E 25 sp. 1,5	E	25.00 x 13.00 - 2.00 x 1.50	ACC	3.6	1000	B
E 25 sp. 2,0	E	25.00 x 13.00 - 2.00 x 2.00	ACC	4.5	1000	B

E 30

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 30 sp. 1,0	E	30.00 x 16.00 - 1.50 x 1.00	ACC	1.5	1000	B
E 30 sp. 1,5	E	30.00 x 16.00 - 1.50 x 1.50	ACC	2.25	1000	B
E 30 sp. 2,0	E	30.00 x 16.00 - 2.00 x 2.00	ACC	3.4	1000	B

E 40

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 40 sp. 1,0	E	40.00 x 22.00 - 1.50 x 1.00	ACC	1.1	1000	B
E 40 sp. 1,5	E	40.00 x 22.00 - 1.50 x 1.50	ACC	1.65	1000	B
E 40 sp. 2,0	E	40.00 x 22.00 - 2.00 x 2.00	ACC	2.9	1000	B

E 50

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 50 sp. 1,0	E	50.00 x 26.00 - 1.50 x 1.00	ACC	0.95	1000	B
E 50 sp. 1,5	E	50.00 x 26.00 - 1.50 x 1.50	ACC	1.4	1000	B
E 50 sp. 2,0	E	50.00 x 26.00 - 2.00 x 2.00	ACC	2.5	1000	B

E 80

Request an estimate

Type	Geom	Mesh mm	Material	Weight kg/m²	Dim mm	Format
E 80 sp. 1,5	E	80.00 x 30.00 - 1.50 x 1.50	ACC	1.2	1000	B
E 80 sp. 2,0	E	80.00 x 30.00 - 2.00 x 2.00	ACC	2.15	1000	B
E 80 sp. 2,0	E	80.00 x 30.00 - 3.00 x 2.00	ACC	3.2	1000	B

Subscribe to Expanded metal
